Description
Voltage-locked dispatch — every DW702 is checked against your local grid frequency and plug standard before it leaves the loading dock, so you never face a three-week transformer hunt on arrival.
Technical Specifications
| Parameter | Value |
|---|---|

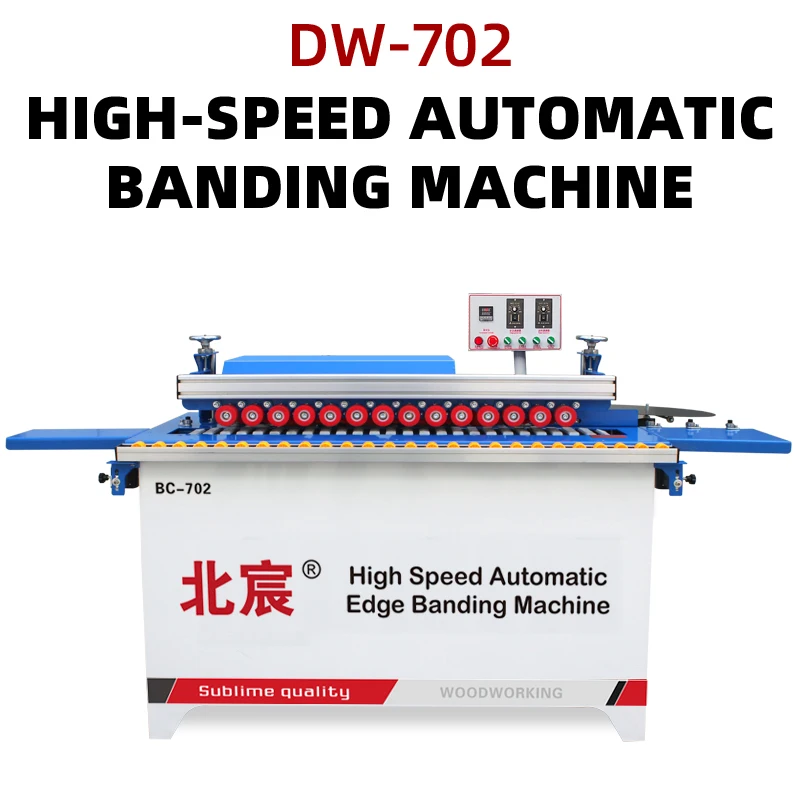

| Model | DW702 |
| Product Type | Automatic Edge Banding Machine |
| Rated Power | 3800W |
| Voltage & Frequency | 220V / 380V / customization available |
| Overall Dimensions (L×W×H) | 120 × 55 × 110 cm |
| Net Weight | 105 kg |
| Minimum Sheet Length | 25 cm |
| Minimum Sheet Width | 10 cm |
| Edge Banding Height Range | 0–50 mm |
| Edge Banding Thickness Range | 0.3–3 mm |
| Glue Pot Capacity | 1000 ml |
| Trimming Power | 800W × 2 |
| Polishing Power | 180W × 2 |
| Transmission Power | 140W |
| Vacuum Power | 1200W |
| Edge Feeding Power | 20W |
| Air Source Pressure | 0.4–0.8 MPa |
| Standard Functions | Edge banding, trimming, polishing, automatic head and tail cutting, vacuum feeding |
| Language Options | Chinese and English standard; English-only, Spanish, or other languages customizable |
| Plug Options | EU, USA, AU, UK |
| Feed Speed | basis not stated in source — confirm at order |
| Panel Thickness Range | basis not stated in source — confirm at order |
| Standards | CE, ISO 9001 |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door and drawer front banding | MDF and particleboard with PVC or melamine edge |
| Custom furniture panel finishing | Plywood and blockboard with veneer or ABS strip |
| Polymer door profile edge sealing | Polymer composite panels up to 50 mm banding height |
| Overflow runs in medium-scale shops | Mixed substrate batches requiring quick changeover |
Why the Voltage Question Comes Before the Price on an Automatic Edge Banding Machine in Stock
We confirm your exact voltage, frequency, and plug type before any DW702 ships, not after it arrives.
Ordering an Automatic Edge Banding Machine in stock feels fast until the unit hits your workshop floor and the breaker trips on first power-up. I have watched a container sit idle at a West African port for three weeks because the machine was wired for 380V while the local grid delivers 220V at 60 Hz — the buyer had to source a step-up transformer locally, burning through both schedule and budget. Voltage mismatches are one of the most common reasons small-format edge banders stall at commissioning, and the fault is almost never the machine itself [NEED_CITE: voltage and frequency standards by export market].
Dispatch Speed Without the Voltage Gamble
The DW702 ships with configurable voltage from 220V to 380V and four plug standards — EU, USA, AU, and UK. Before any Automatic Edge Banding Machine in stock leaves the floor, the electrical schematic is re-checked against the destination country’s grid. This step adds little time to the process but prevents weeks of downtime.
One-Pass Workflow in a Compact Footprint
At 120 × 55 × 110 cm, the DW702 fits into workshops where a full-size edge bander would block material flow. Edge banding, trimming, polishing, and automatic head-and-tail cutting all complete in a single feed pass. The 1000 ml glue pot sustains continuous runs without frequent refills, which matters when you are running a batch of cabinet panels and cannot afford a mid-run stop.
Thickness Range That Covers Real Shop Materials
The 0.3–3 mm edge banding thickness range handles thin PVC for melamine cabinet work up through thicker veneer strips for plywood furniture [NEED_CITE: edge banding material thickness ranges in furniture production]. Operators switching between MDF and particleboard during the same shift simply adjust the thickness dial and feed height — no tooling change required.
Reading the Specs That Matter
The dual 800W trimming motors cut excess banding flush on both top and bottom in one pass, which directly affects downstream assembly: if trim is uneven, panels will not seat square in dowel or confirmat joints. The 0.4–0.8 MPa air pressure requirement means most standard workshop compressors can supply the machine without a dedicated line. Glue pot temperature stability across a 1000 ml volume keeps adhesive viscosity consistent, reducing the visible glue line on lighter PVC and veneer materials. Panel minimums of 25 cm length and 10 cm width allow the DW702 to handle small offcuts and drawer components that larger banders simply cannot grip.
The Hidden Cost of Skipping the Electrical Confirmation
When buyers focus only on feed speed and price, the electrical mismatch goes unnoticed until the machine is uncrated. A 380V motor fed with 220V draws excessive current, overheats the windings, and trips the thermal overload within minutes — or worse, it runs but the glue pot never reaches operating temperature, leaving every panel with a weak bond that fails during assembly. I have seen this exact scenario force a workshop to hand-band for weeks while waiting for a replacement motor shipped overseas [NEED_CITE: industrial motor failure modes under voltage mismatch].
Why Source This Automatic Edge Banding Machine in Stock Through This Channel
The DW702 is held in ready stock, so dispatch lead times stay short compared to made-to-order configurations. Every unit ships with a factory test record run on actual panel material matching your substrate. Voltage, plug type, and control-panel language are all locked in at order — not guessed at the warehouse. The four-stage quality check covers incoming components through pre-shipment verification, so the machine you receive matches the specification sheet. Spare parts lists and operation manuals ship in your agreed language from day one.
Documentation & Verification
- CE declaration of conformity matched to the DW702 unit serial
- ISO 9001 certificate covering the manufacturing facility
- Electrical schematic confirming your voltage, frequency, and plug type
- Factory test record with your target panel material and thickness
- Operation and maintenance manual in your chosen language
- Spare parts list with part numbers for reorder reference
Installation, Commissioning & Support
- Requires a dedicated 3800W circuit with proper grounding for the DW702
- Confirm 0.4–0.8 MPa compressed air supply before first startup
- Unit ships assembled; position on level floor within the 120 × 55 × 110 cm footprint
- First-run calibration includes glue temperature, trimming depth, and feed alignment
- Control panel language set to your specification at the factory before dispatch
- Spare wear parts and maintenance schedule included in the shipping carton
What We Need to Move Your Order Forward
Share your local voltage and frequency so we can match the motor and glue-pot heater to your grid. Let us know the primary panel material and edge banding type you will run most often, and the control-panel language your operators need. If you are fitting the DW702 into an existing line, send the upstream saw or router output rate so we can confirm throughput compatibility.
Frequently Asked Questions
Q: Is the DW702 currently in stock, and how quickly can it ship?
A: The DW702 is stocked for fast dispatch. Lead time depends on the voltage and plug configuration you require, since each unit is verified against your grid specification before release. Once your electrical details are confirmed, the pre-shipment test and documentation package are completed, and the machine is cleared for loading.
Q: Can you confirm voltage and plug type for my country before I place the order?
A: Yes. We require your exact voltage, frequency, and plug standard at the inquiry stage. The electrical schematic is then prepared to match, and the nameplate is verified during the pre-shipment check. This prevents the all-too-common scenario of a machine arriving with incompatible wiring.
Q: What panel materials and edge banding thicknesses does the DW702 handle?
A: The DW702 handles MDF, particleboard, plywood, blockboard, and polymer panels with edge banding from 0.3 mm to 3 mm thick and up to 50 mm in height. PVC, melamine, veneer, and ABS strips all fall within this range, covering most cabinet and custom furniture applications.
Q: Will the control panel and manual be in my language?
A: Chinese and English are standard on the control interface. English-only, Spanish, and other languages can be specified at order. The operation and maintenance manual ships in your agreed language, and the spare parts list uses numbered references for straightforward reordering.
Q: What spare parts ship with the machine, and how do I reorder?
A: Each DW702 ships with a starter set of wear parts and a numbered spare parts list. When you need replacements, reference the part number from the list and your order records. We keep consumable and wear components available for dispatch to keep your machine running.
