Description
Fast dispatch XZF450 in stock — every unit leaves the warehouse with voltage locked, plug matched, and a test record on your exact panel stock.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | XZF450 |

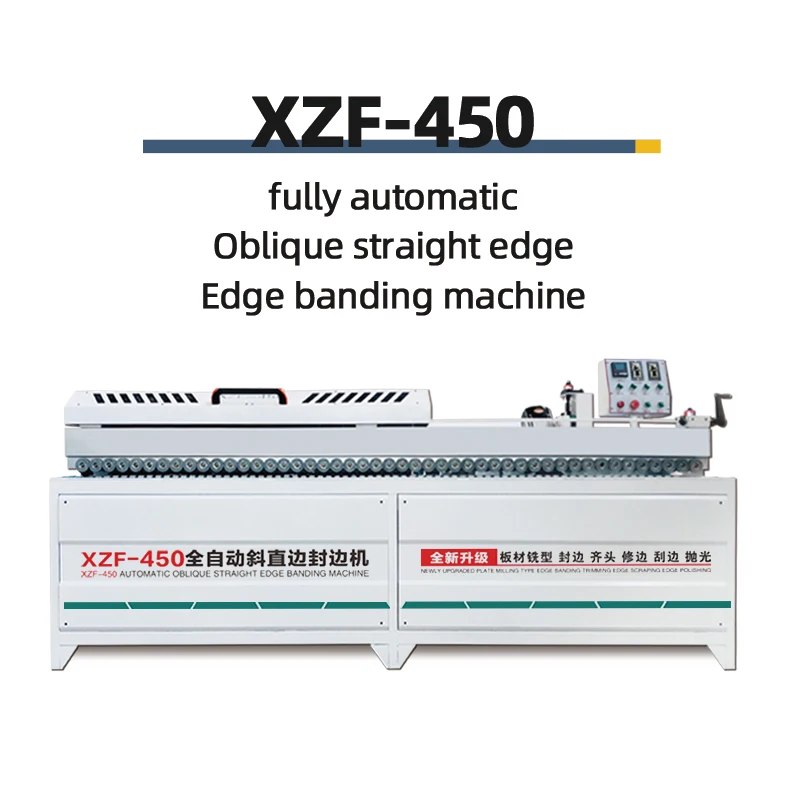

| Product Type | Bevel and Straight Edge Banding Machine with Pre-Milling |
| Total Power | 9.5 kW |
| Pre-Milling Motor | 4 kW |
| Edge Feed Power / Speed | 0.16 kW / 0-12 m/min |
| Transmission Power / Speed | 180 W / 0-12 m/min |
| Trimming Power | 2.2 kW × 2 |
| Polishing Power | 0.4 kW × 2 |
| Voltage | 380V / 415V |
| Air Source Pressure | 0.5-0.7 MPa |
| Glue Pot Capacity | 4000 ml |

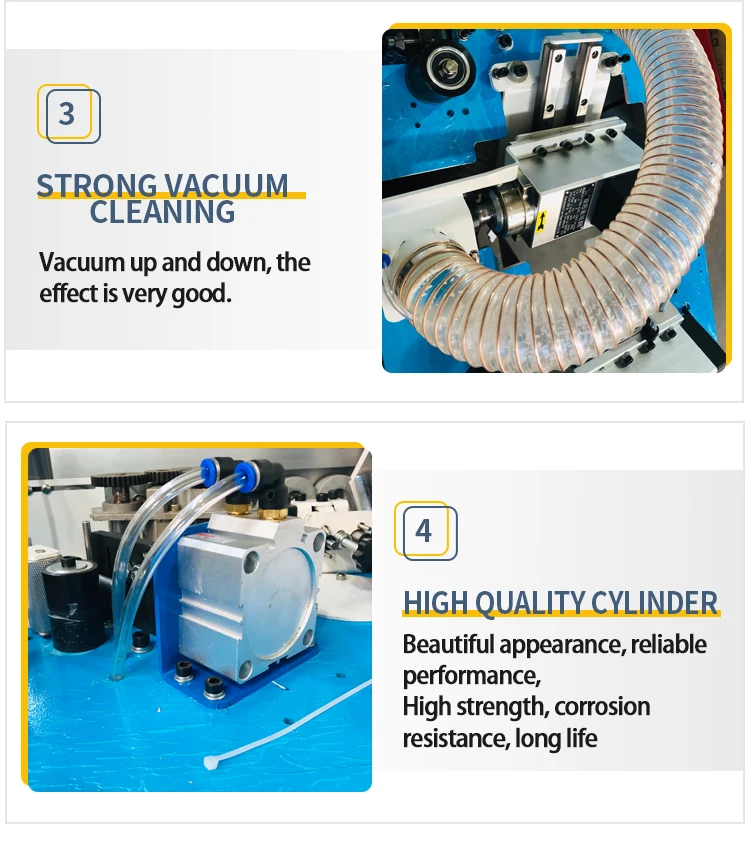

| Vacuum Power | 550 W |
| Machine Dimensions | 300 × 65 × 135 cm |
| Machine Weight | 430 kg |
| Minimum Sheet Length | 30 cm |
| Minimum Sheet Width | 15 cm |
| Edge Banding Height | 0-50 mm |
| Edge Banding Thickness | 0.3-3 mm |
| Bevel Angles | 30° / 45° / 60° plus 90° straight |
| Control Panel Language | Chinese / English, configurable to Spanish or others |
| Plug Standard | EU / USA / AU / UK options |
Application Suitability
| Application | Material or Output |
|---|---|
| Cabinet door bevel edging | MDF and melamine board at 45° for invisible joints |
| Custom furniture straight banding | Plywood and particleboard with PVC or veneer strips |
| Polymer door profiling | Blockboard and solid wood panels up to 50 mm edge height |
| Small-batch workshop production | Mixed substrates requiring frequent angle and thickness changes |
Why Voltage Confirmation Must Happen Before You Pay
An edge bander wired for the wrong grid is dead weight on your shop floor.
I have seen containers arrive in Latin American ports with machines built for 380V/50Hz, only to find the local grid runs 440V/60Hz. The motors overheat within the first shift, the glue pot controller throws faults, and the buyer spends weeks sourcing step-down transformers that were never part of the plan. This edge banding machine in stock ships with your voltage and frequency locked in before it leaves Ningjin. [NEED_CITE: voltage and frequency standards by export market]
What Ready Stock Actually Means for Your Timeline
When a workshop commits to a new edge bander, downtime between the old process and the new machine costs real money in delayed shipments. The XZF450 sits in our warehouse tested and crated, so the gap between order confirmation and container loading shortens to days rather than weeks. You receive packing photographs and the pre-shipment test record before the container is sealed.
Bevel and Straight Edging in One Pass

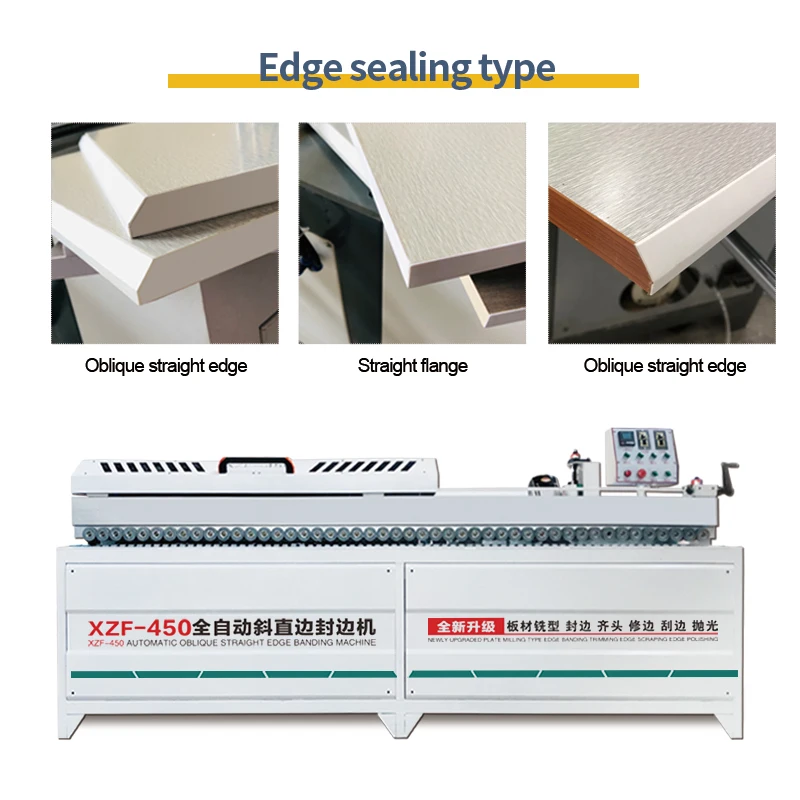

Most small to mid-size cabinet shops run two separate operations for 45° bevel edges and 90° straight edges, doubling material handling and floor space. The XZF450 covers 30°, 45°, and 60° bevel angles alongside standard straight banding on a single feed table, which means one operator handles the full panel edge menu without moving the workpiece to a second machine. [NEED_CITE: CE machinery directive requirements for industrial equipment]
How the Pre-Milling Station Changes Glue Line Quality

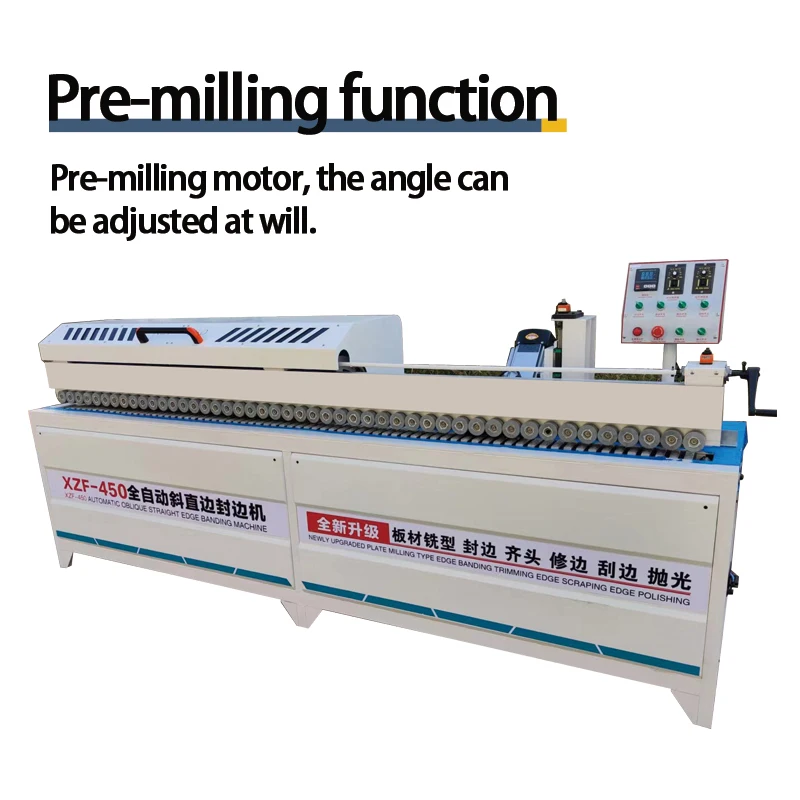

The 4 kW pre-milling motor removes a thin layer from the panel edge immediately before the glue application zone. This matters because panel saws, even well-maintained ones, leave micro-chips and tear-out on MDF and melamine surfaces. Without pre-milling, those imperfections telegraph through the edge band as visible bumps or starved glue spots. The XZF450 pre-milling station produces a fresh, square substrate face so the hot-melt adhesive bonds evenly across the full 0.3-3 mm banding thickness range.

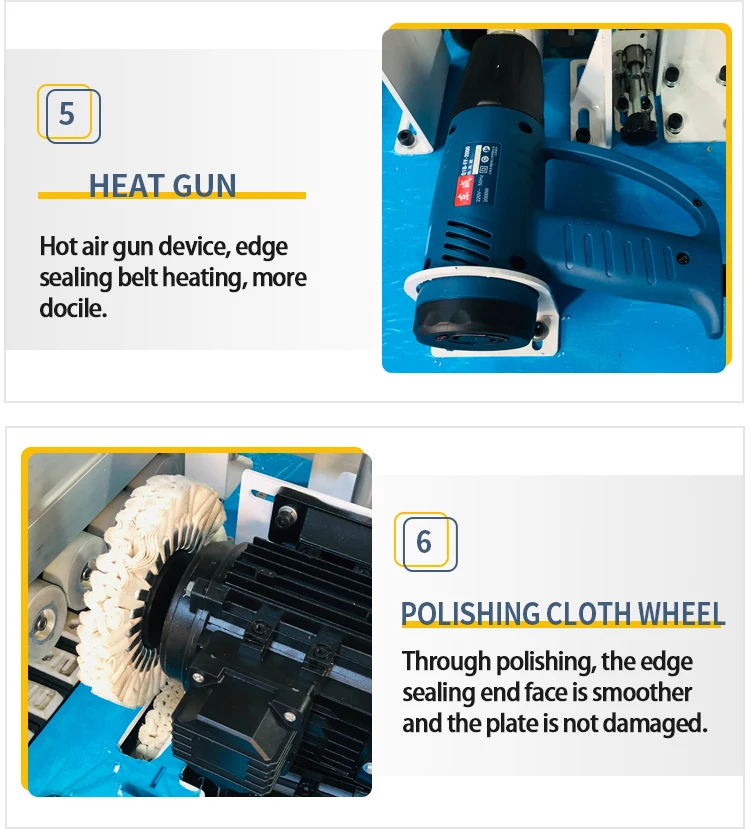

The 2.2 kW × 2 trimming motors handle both end trimming and edge trimming in sequence, removing overhang without a second pass. The 180 W dedicated transmission drive maintains consistent feed speed from 0 to 12 m/min regardless of panel weight, which keeps the glue bead uniform on heavy blockboard and light particleboard alike. Polishing at 0.4 kW × 2 cleans residual adhesive and buffs the banding face to match the panel surface finish.
The Real Cost of Skipping Pre-Shipment Testing
Workshops that accept a machine without a factory test record often discover tolerance issues only after installation, when panels fail to assemble square. Edge banding thickness variation, glue line gaps, and bevel angle drift all show up on the first production batch — by which point the container has sailed and on-site troubleshooting begins. [NEED_CITE: common edge banding defects traced to unverified machine setup]
Every XZF450 that ships from our facility runs a test cycle on panel stock matching your specifications. The test record documents edge adhesion, trimming accuracy, and bevel angle consistency so you can verify performance before the machine is crated.
Why Buyers Source This Machine Here
In-house manufacturing with patented cutting mechanisms means tolerance claims are verifiable on the test floor, not just printed in a brochure. Voltage, plug type, and control panel language are confirmed at the quotation stage, so the machine that arrives matches your shop’s electrical and operator requirements. A four-stage QC process covers incoming material inspection through pre-shipment verification, with each XZF450 checked against its own test record. Engineer-led configuration ensures the machine you order fits your panel sizes and daily volume rather than overshooting or underperforming. Orders from single units to container loads receive the same documentation and packing standard.
Documentation & Verification
- CE declaration of conformity covering the full XZF450 assembly
- ISO 9001 certificate for the manufacturing facility
- Electrical schematic matching your confirmed voltage and plug standard
- Factory test record run on your panel thickness and edge material
- Operation manual in your chosen language with spare parts illustrations
Installation, Commissioning & Support
- Requires a level concrete floor supporting 430 kg across the 300 × 65 cm footprint
- Dedicated 380V/415V three-phase circuit rated for 9.5 kW total draw
- Arrives partially assembled; feed table and polishing hoods require on-site alignment
- First-run parameter setting covers glue temperature, feed speed, and trimming depth for your material
- Spare trimming cutters and polishing wheels included for initial replacement cycles
Before You Send the Inquiry
Tell us the panel substrates you process most often, the edge banding materials and thickness range you run, and your local voltage and frequency. Include your preferred control panel language and plug standard. If you are replacing an existing machine, share the daily linear meter output you need to maintain so we confirm the XZF450 feed speed matches your throughput.
Frequently Asked Questions
Q: Is the XZF450 in stock and what is the dispatch lead time?
A: The XZF450 is held in ready stock for fast dispatch. Once your voltage, plug standard, and control panel language are confirmed, the machine moves to pre-shipment testing and crating. Typical turnaround from order to container loading is measured in days, not weeks, and packing photographs are shared before the shipment leaves.
Q: Can I get the control panel in a language other than Chinese or English?
A: Yes. The XZF450 operation panel ships in Chinese or English by default and can be configured to Spanish or other languages before dispatch. Specify your requirement at the quotation stage so the correct firmware is loaded and tested during the pre-shipment run.
Q: What plug standard will the machine ship with for my country?
A: The XZF450 ships with EU, USA, AU, or UK plug options matched to your destination. Confirm your local plug standard when you send the inquiry so the correct configuration is installed and verified before the machine is crated for export.
Q: How do I confirm the voltage is correct before the machine leaves the warehouse?
A: Voltage and frequency are confirmed at the quotation stage and written into the order specification. The pre-shipment test record documents the machine running at your confirmed 380V or 415V setting, and the electrical schematic included with the shipment reflects the exact configuration.
Q: What spare parts come with the machine and how do I order replacements?
A: The XZF450 ships with a spare parts list covering consumable trimming cutters, polishing wheels, and wear items. A starter set is included in the crate. Replacement parts are ordered by referencing the spare parts list number, and availability is confirmed within one business day.
