Description
Voltage-Confirmed Dispatch — Every DW-3600GF unit undergoes electrical verification matched to your workshop’s local grid before it leaves the floor, ensuring it powers on the day it arrives.
Technical Specifications
| Parameter | Value |
|---|---|

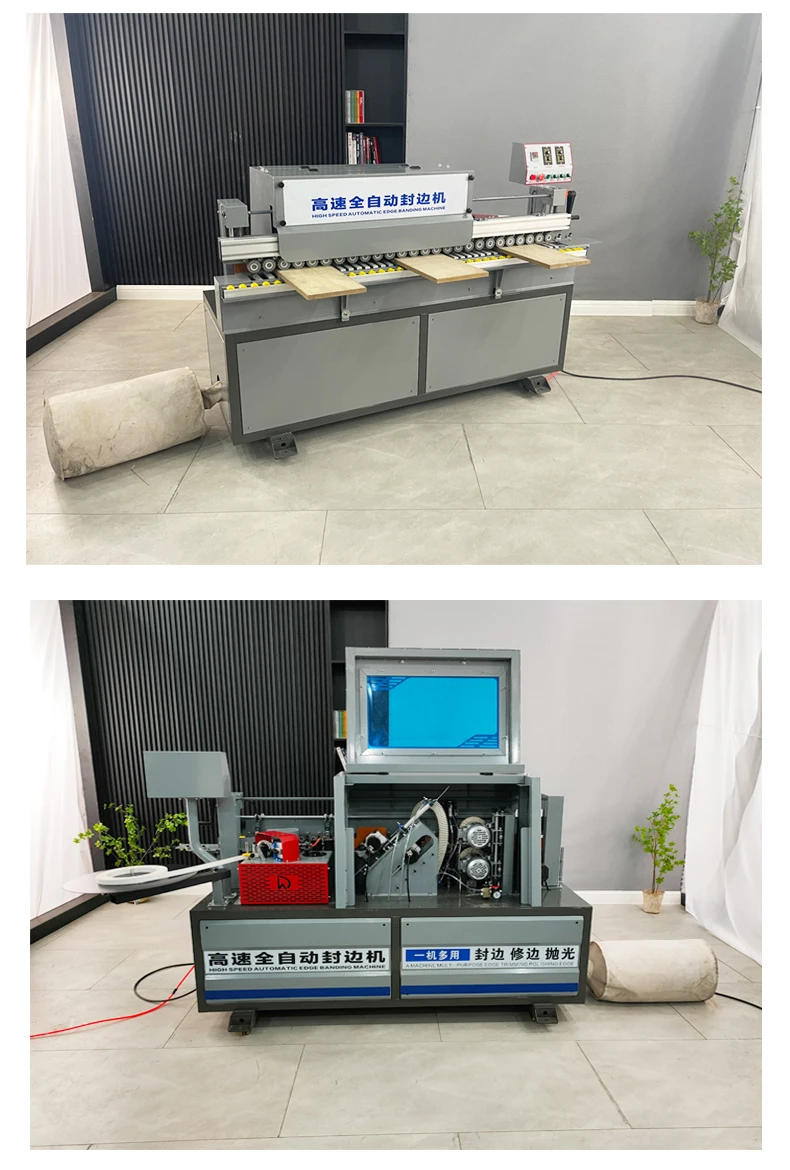

| Model | DW-3600GF |
| Product Type | Automatic Edge Banding Machine |
| Voltage & Frequency | 380V Three-Phase Four-Wire (frequency 50Hz/60Hz to be confirmed at order) |
| Total Power | 4.9 kW |
| Overall Dimensions (L×W×H) | 2200 × 650 × 1250 mm |
| Net Weight | 320 kg |
| Edge Banding Type | Straight Edge Banding |
| Edge Band Height Range | 0–50 mm |
| Edge Band Thickness Range | 0.3–3 mm |
| Minimum Panel Length | 200 mm |
| Feed Speed | 0–14 m/min (basis to be confirmed for standard panel thickness and material) |
| Edge Banding Motor Power | 160 W |
| Transmission Motor Power | 180 W |

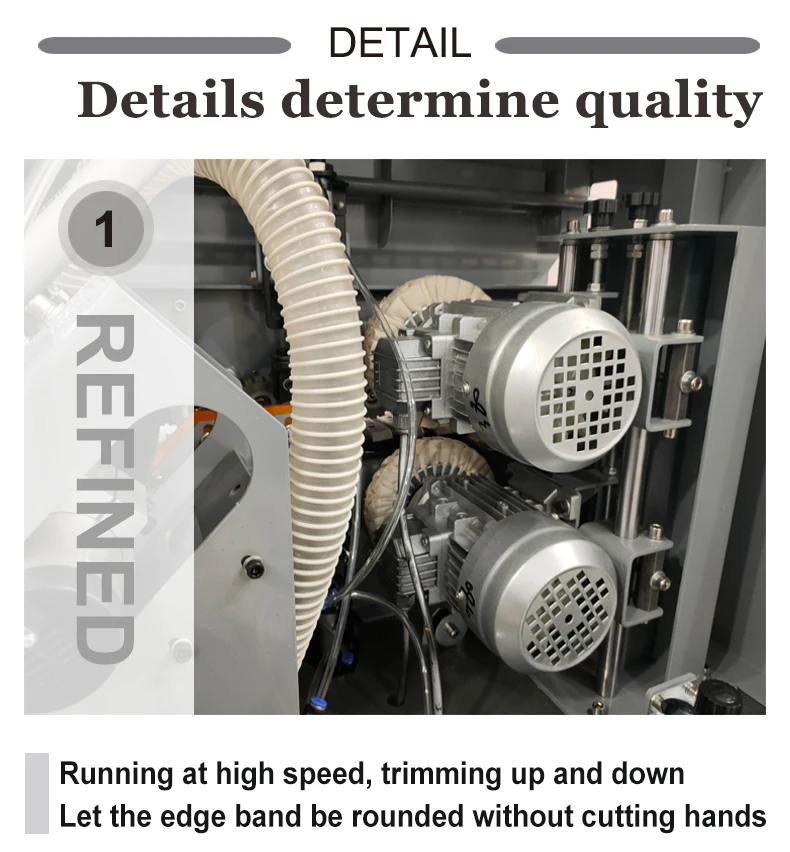

| Trimming Motor Power | 800 W × 2, 24,000 r/min |
| Polishing Motor Power | 400 W × 2 |
| Air Supply Requirement | 0.4–0.6 MPa |

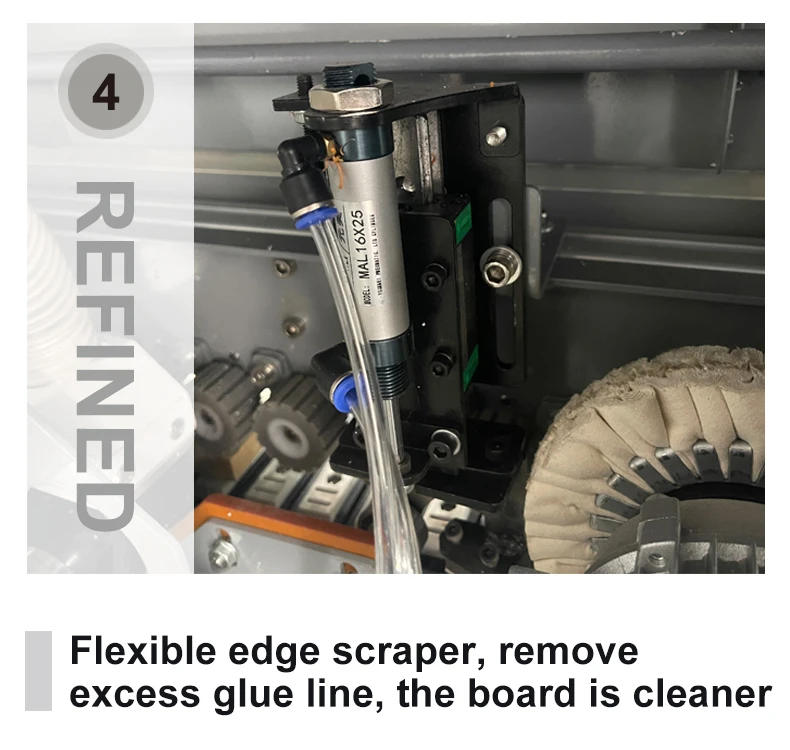

| Standard Functions | Gluing, Rough Trimming, Fine Trimming, Front & Rear End Trimming, Scraping, Polishing, Vacuuming |
| Language Options | Chinese / English standard; single-language customization available |
| Plug Options | EU / USA / AU / UK |
Application Suitability
| Application | Material or Output |
|---|---|
| Custom cabinet door and carcass edge finishing | MDF and particleboard with PVC or ABS edge banding |
| Small-batch furniture component banding | Plywood panels with wood veneer edge strips |
| Workshop transition from manual trimming to automated edge processing | Straight-edged panels from 200 mm minimum length |
| Regional distributor demo or showroom unit | Representative sample runs on common panel substrates |
Why the Voltage Question Must Come Before the Crate Is Nailed Shut
Confirming your workshop’s exact voltage and frequency before dispatch is the single most effective way to prevent a dead-on-arrival machine.
I once watched a small cabinet shop in Guadalajara lose nine production days because the edge bander that arrived was wired for a frequency their local grid did not supply. The motor overheated within the first hour, and sourcing a compatible replacement locally was impossible. That Automatic Edge Bander in stock could have been running panels on day one if a two-minute voltage conversation had happened before packing. [NEED_CITE: voltage and frequency standards by export market]
The DW-3600GF ships with plug options covering EU, USA, AU, and UK standards, and the 380V three-phase configuration is verified against your confirmed supply before the crate closes. Skipping this step is the fastest way to turn a fast-delivery order into a long-delay problem.
How Single-Unit Ordering Changes Your Workshop Timeline
Most woodworking machinery suppliers set minimum order quantities that make sense for container loads but punish the small shop that needs exactly one Automatic Edge Bander in stock to fill a capacity gap. This model is available for single-unit dispatch with no quantity floor, so you can add edge banding capability the moment your budget clears rather than waiting to bundle a full line purchase. Shipping options are quoted at the time you confirm your order, giving you a clear dispatch date rather than an open-ended production window.
Stocked Configuration Means the Lead Time Is Measured in Days, Not Months
When a machine sits ready on the warehouse floor, the timeline shifts from manufacturing lead time to freight transit time. The DW-3600GF in its standard seven-function configuration — gluing, rough and fine trimming, end trimming, scraping, polishing, and vacuuming — is held as a stocked unit so that your order triggers packing and documentation rather than a build schedule. For workshops facing a sudden uptick in cabinet orders or replacing a failed machine, this distinction is the difference between a two-week gap and a two-month gap. [NEED_CITE: typical lead times for imported woodworking machinery]
Reading the Specs That Actually Matter on the Shop Floor
The feed speed range of 0–14 m/min gives operators control over how quickly panels move through each station, and the right setting depends on the edge band material in use. PVC and ABS at 0.3–1 mm thickness typically run well at the upper portion of the range, while thicker veneer strips near the 3 mm maximum benefit from slower feed speeds to allow the adhesive adequate contact time. The dual trimming motors at 800 W each and 24,000 r/min are sized to cleanly shear both thin PVC and denser wood veneer without tear-out, which directly affects whether the panel moves to assembly or back to rework. Edge band height capacity from 0 to 50 mm covers the full spectrum of standard cabinet and furniture panel thicknesses without requiring tooling changeovers. The 320 kg net weight and 2,200 mm footprint mean this Automatic Edge Bander in stock fits into a compact workshop bay without demanding a dedicated foundation or reinforced floor.
The Hidden Cost of Buying Piecemeal Without Checking Compatibility
A common pattern I see in small workshops is buying an edge bander that handles the panel thickness they work with today, only to discover six months later that a new contract requires panels outside that range. The machine then sits underutilized while the shop reverts to hand trimming for the larger orders. With the DW-3600GF, verifying your full anticipated panel size range against the machine’s edge band height and thickness capacity before ordering prevents this mismatch. [NEED_CITE: common causes of edge banding equipment underutilization in small workshops]
Equally costly is receiving a machine with a control panel in a language your operator cannot read. Commissioning stalls, mistakes happen during setup, and the first batch of panels comes off with visible glue lines or uneven trimming. Language confirmation at order — whether standard English or a customized single language — eliminates this entirely.
Why Procuring This Model Through a Stock-Ready Channel Works
The DW-3600GF carries seven integrated edge-finishing functions in a single 2.2-meter frame, meaning it replaces multiple manual stations without consuming a full production line’s worth of floor space. Voltage and plug type are locked in at the point of order, not left as a surprise when the crate opens. Every unit ships with a factory test record specific to your confirmed panel thickness range, so you see the machine running your material before it leaves the facility. Spare parts and an operation manual in your agreed language ride in the same crate. Dispatch timing is stated at order confirmation rather than estimated weeks after payment.
Documentation & Verification
- Factory test record captured on your specified panel material and thickness before dispatch
- Electrical schematic reflecting your confirmed voltage, frequency, and plug configuration
- Operation and maintenance manual delivered in your chosen language at shipment
- Spare parts list matched to the seven-function configuration you receive
- Packing photographs provided before the crate leaves the warehouse floor
Installation, Commissioning & Support
- Requires a level concrete floor with clearance around the 2200 × 650 mm footprint for panel feed and operator access
- Dedicated 380V three-phase circuit with appropriate breaker sizing for the 4.9 kW total draw
- Arrives as a single assembled unit requiring only air supply connection and electrical hookup
- Initial commissioning includes feed speed calibration and trimming motor alignment to your edge band material
- Operator walkthrough covers all seven function stations, glue pot temperature setting, and daily cleaning routines
- Spare scraper blades and polishing wheels included in-crate to cover early production runs
What We Need From You to Release This Machine
To move from inquiry to dispatch, share your local voltage and frequency, the edge band materials you run most often, and your typical panel dimensions. If you have existing upstream saws or downstream boring equipment, let us know the feed heights so we can confirm compatibility. A quick confirmation on your preferred plug type and manual language is all that stands between your order and a booked shipment date.
Frequently Asked Questions
Q: Is the DW-3600GF currently in stock, and how quickly can it ship?
A: This model is held as ready stock in its standard seven-function configuration. Once you confirm voltage, plug type, and manual language, packing and documentation begin immediately. Actual delivery timing depends on your destination port and chosen freight method, which are quoted at order confirmation so you have a clear date rather than an estimate.
Q: Can I order just one unit, or is there a minimum quantity?
A: Single-unit orders are standard for this model. There is no minimum order quantity, making it practical for a workshop adding edge banding capacity or a distributor ordering a showroom demo unit. Shipping costs are quoted transparently for the one-machine crate.
Q: How do I make sure the voltage and plug match my workshop before shipping?
A: At the time of order, you provide your workshop’s voltage, phase configuration, and frequency. The machine is then verified against those values, and the matching plug type — EU, USA, AU, or UK — is installed before packing. A confirmation photo of the electrical plate is shared before dispatch.
Q: What comes in the crate besides the machine itself?
A: Each shipment includes the operation and maintenance manual in your agreed language, a matched spare parts list with initial consumables, the factory test record from pre-shipment verification, and packing photographs. Tooling for all seven functions is already installed and tested on the machine.
Q: How is the machine packed for international shipping, and what freight options exist?
A: The DW-3600GF is secured in a export-grade wooden crate with internal bracing around the 320 kg frame. Both ocean freight and air freight options are available depending on your timeline. Shipping quotes covering your destination port or door are provided when the order is confirmed.
