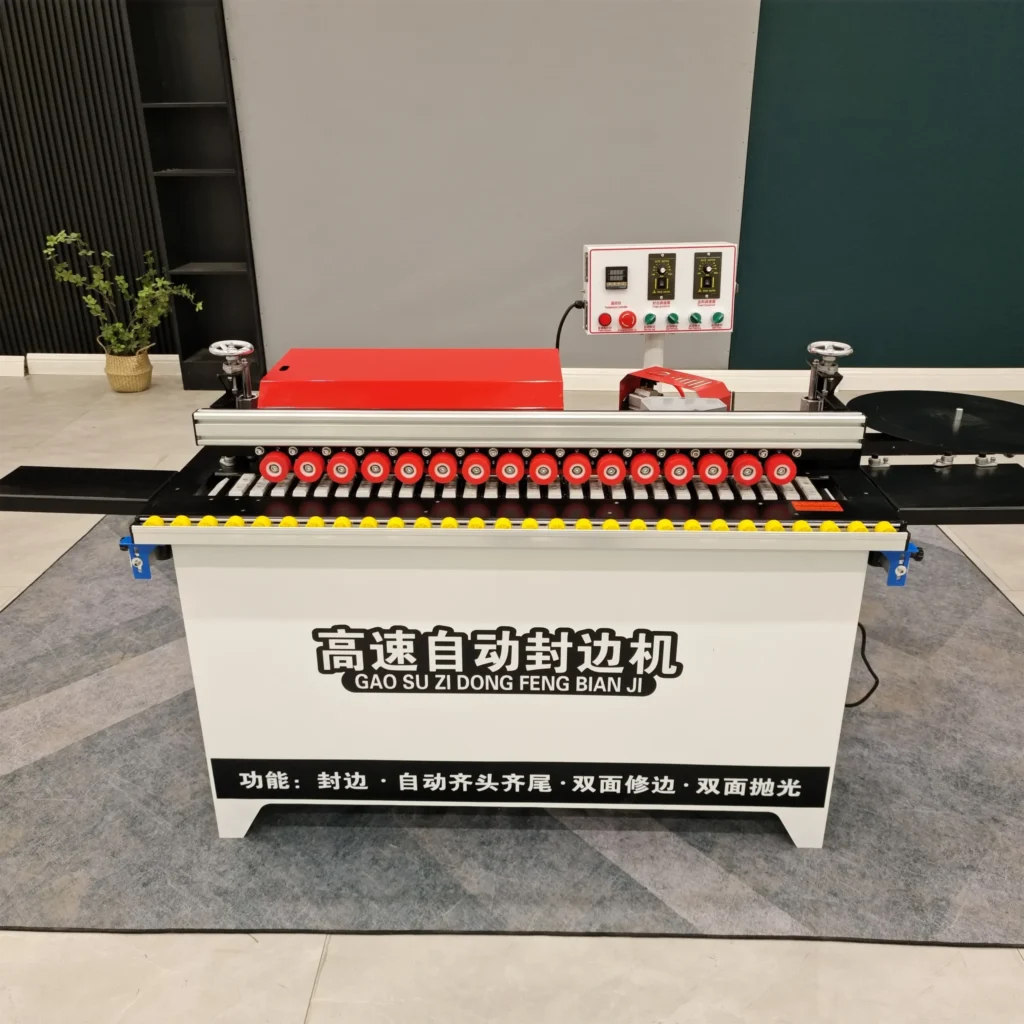

Automatic Wood Based Board Mdf Melamine Pvc Edge Bending Machine
CE Certified ISO9001
Wood Based Panels Machinery

Automatic Wood Based Board Mdf Melamine Pvc Edge Bending Machine

This product is currently out of stock and unavailable. SKU: Automatic Wood Based Board Mdf Melamine P-36310942 Categories: Wood Based Panels Machinery, Woodworking Machinery Description Additional information Description Products Disply Product Parameters ModelZDSF802 Full-line Auto Edge Banding Machine802FunctionGluing. End cutting. Trimming.Vacuumming. BuffingRated voltage220VRated power4KWStrip thickness0.5-2.5mmSheet thickness10-50mmRated air pressure0.6-0.8mpa0.4-0.6mpaWorking speed0-7m/min0-10m/minConveyer belt0-14m/min0-10m/minGlue capacity4000ml4000mlOverall size190*60*130cm130*65*75cmMachine weight150kg150kg our servicesWe can […]

20yrs
Experience
100+
Countries
OEM
Customizable
  • CE & ISO9001 certified -- meets global import standards
  • Full OEM/ODM: custom logo, voltage (110V-440V), multilingual panels
  • Factory-direct pricing with stable supply chain
  • Professional after-sales: remote support, warranty & spare parts
  • Suitable for small workshops to large industrial factories
Request a Free Quote WhatsApp Now

Direct Contact

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply
Product Parameters
Model
ZDSF802 Full-line Auto Edge Banding Machine
802
Function
Gluing. End cutting. Trimming.Vacuumming. Buffing
Rated voltage
220V
Rated power
4KW
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Rated air pressure
0.6-0.8mpa
0.4-0.6mpa
Working speed
0-7m/min
0-10m/min
Conveyer belt
0-14m/min
0-10m/min
Glue capacity
4000ml
4000ml
Overall size
190*60*130cm
130*65*75cm
Machine weight
150kg
150kg
 our services
We can provide you with various custom services
Product details
Control panel. digital display of glue pot temperature. independent switch. easy to operate.
Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.
4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.
702 model glue pot is 1000ml.
Pneumatically controlled belt breaking method is precise and labor-saving.
Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors. the polishing effect is better.
edge banding tray.
